What connectors work with alf att 3g50 hp n connectors

Questions & Answers
1

I use rg8x and 7.3m bury coax what connectors will connect up to an alpha Delta att 3g50 n connection

2

I suggest the M&P N connectors as they have superior weather sealing by way of the rubber O ring.

https://www.gigaparts.com/m-p-n-male-7mm-solder-enhanced-connector-2-pack.html

Also the M&P Ultraflex 7 coax is superior to the RG8Xin every way.

Thanks so much for your question and continued business!

73
Doug W3CF

1 Like
3

Well your RG8x. if it has standard connectors, will most likely be PL-259. As Doug mentioned the 3G50N is an N connector on both sides of the lightning arrestor. So you either need RG8X with Male N type connectors or you need an adapter to go from male Pl-259 to male N type. My recommendation is use the Alpha Delta AG350U which would take 2 PL-259 connectors on the SO-239 female connectors. This fine lightning arrestor handles up to 200 watts from your radio and goes inline between your radio and your antenna.

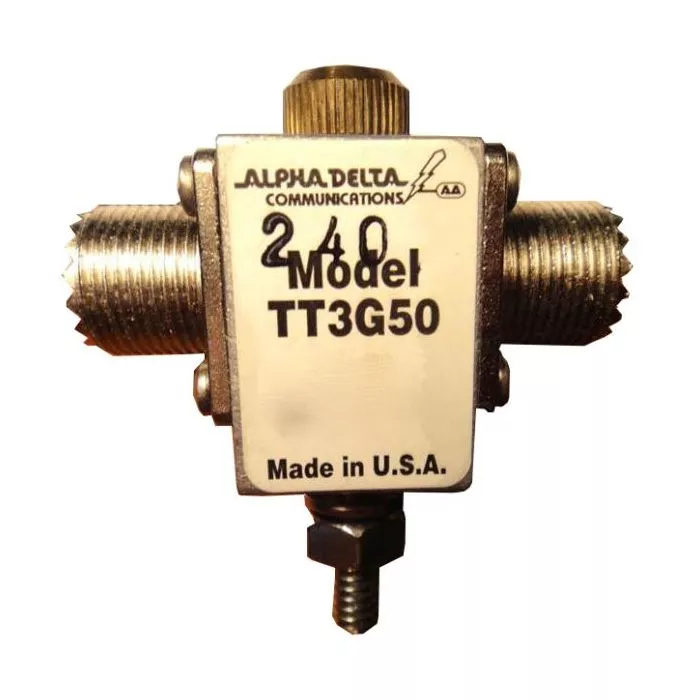

ALPHA DELTA ATT3G50U

ALPHA DELTA ATT3G50U

SKU: ZAD-ATT3G50U

https://www.gigaparts.com/alpha-delta-att3g50u.html
